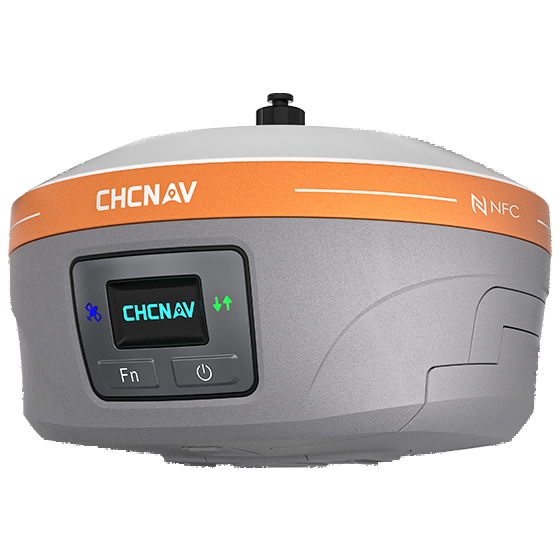

CHCNAV iBase

Integrated GNSS Base for Optimal Ease of Use

ibase

Highlights

The iBase GNSS receiver offers a streamlined solution as a GNSS base station designed to meet surveyor’s needs. Its performance rivals that of a standard external UHF radio modem without the bulk of external batteries, cables, radios, and antennas. With a 5-watt radio module, it provides GNSS RTK coverage up to 25 km under optimal conditions. Its real-time UHF interference self-checking capability allows operators to select the best frequency channel, increasing ease of use and efficiency. In addition, iBase's integrated AUTO-IMU enhances its functionality as a GNSS rover.

ibase

Main Features

118
220
323
413

Premium GNSS

GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS and PPP for robust signal tracking.

Long-Range

5-watt UHF modem for coverage up to 25 km.

Cable-free

No need for external batteries and cables.

Long Battery Life

Up to 12 hours of continuous operation.

Benefits and Performances

01 Integrated and Rugged Design

Eliminate the need for external batteries and cables with the iBase’s integrated design. Its industrial-grade build meets IP67 standards for dust and water resistance and has an IK08 shock rating for durability.

02 Comprehensive GNSS Tracking

Ensure superior accuracy with the iBase's 1408-channel GNSS technology. It supports GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS constellations and PPP service, providing dependable RTK corrections and improving survey accuracy and efficiency.

03 Advanced Multipath Mitigation

Improve positioning accuracy with advanced multipath mitigation algorithms. The iBase ensures that high-quality GNSS corrections are transmitted to rovers for optimal performance in challenging environments.

04 Long-Range UHF Transmission

Achieve wide field coverage with the iBase’s built-in 5-watt UHF radio module. It provides GNSS RTK coverage up to 25 km under optimal conditions, ensuring uninterrupted data transmission over long distances.

05 Real-Time UHF Interference Checking

Improve efficiency with the iBase’s real-time UHF interference self-checking capability allowing operators to select the most appropriate frequency channel for optimal performance.

06 Extended Battery Life

Perform extended field operations with the iBase’s dual hot-swappable high-capacity batteries. The advanced electronic design reduces power consumption, ensuring efficient use and extended operating time.

1742202309747

Use Cases

1

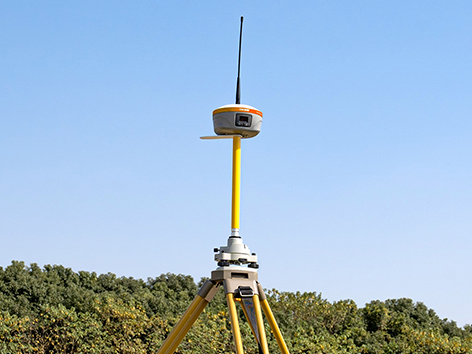

On-site GNSS Station

2

Construction Survey

3

Cadastral Survey

Detailed Specifications

1742202309747
CHCNAV iBase

Integrated GNSS Base for Optimal Ease of Use

       Positioning
  • GNSS : Full GNSS
  • Precision max. : 0,8 cm H / 1,5 cm V
Connectivity
  • Wireless : Bluetooth, Wi-Fi, NFC
  • Cellular : 4G LTE
  • Modem : 410-470 MHz, Rx/Tx
Physical
  • Weight : 1,73 kg
  • Dimensions : 160,5 x 103 mm
  • Battery life : Up to 12 hours RTK base

OVERVIEW

The iBase GNSS receiver is a fully integrated professional GNSS base station, specifically designed to meet 95% of surveyors' needs when working in UHF GNSS base and rover mode. The performance of the iBase UHF base station compared to a standard external UHF radio modem is almost perfect. But its unique design eliminates the need for a heavy external battery, cumbersome cables, external radio and radio antenna. Its 5-watt radio module provides operational GNSS RTK coverage up to 8 km and features a real-time UHF interference self-checking technique, allowing the operator to select the most appropriate frequency channel to use.
