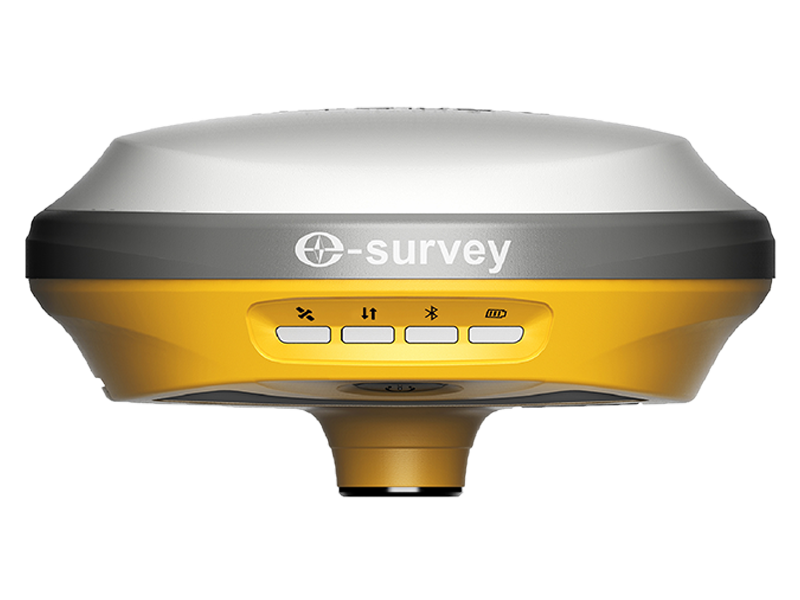

E100 NETWORK RTK RECEIVER
E100
NETWORK RTK RECEIVER
The eSurvey E100 is a network receiver that will get more done faster than you thought possible. This entry-level GNSS solution handles multiple frequencies from multiple constellations, improving position accuracy. Thanks to its ultra-compact design and built-in RTK Aid function, the E100 is an ideal rover station receiver for a CORS system. The E100 is suitable for different applications such as car and machine control.
Overview
Compact Design: Easy to Carry
Easily carry it in a variety of complex environments, benefiting from its lightweight and compact design.
Intelligent Voice
The E100 can automatically broadcast a voice alert to the user when the solution status changes. It also manually broadcasts the current working mode and solution status by short-pressing the power button.
Web UI
It allows users to view position status, set up working mode, download data, and update firmware from the Web user interface with any smartphone, tablet, or PC.
Max 60° Tilt Survey: A Different Way of Working
· Quickly measure accurate points while standing or walking without leveling the pole.
· Concentrate on where the pole tip needs to go, which is especially useful during a stakeout.
· Easily start a survey in environments that are hard to reach, such as building corners and slopes.
· No longer worry about the movement of the pole when measuring, provided that the pole tip is stationary.
RTK Aid Function: Uninterrupted Work
Work without interruption even when RTK corrections fail, powered by our RTK aid function.
Rugged Design
The main body of the E100 is made of magnesium alloy materials which has strong shock and vibration resistance. IP67 certification ensures operation in variety of tough environments.

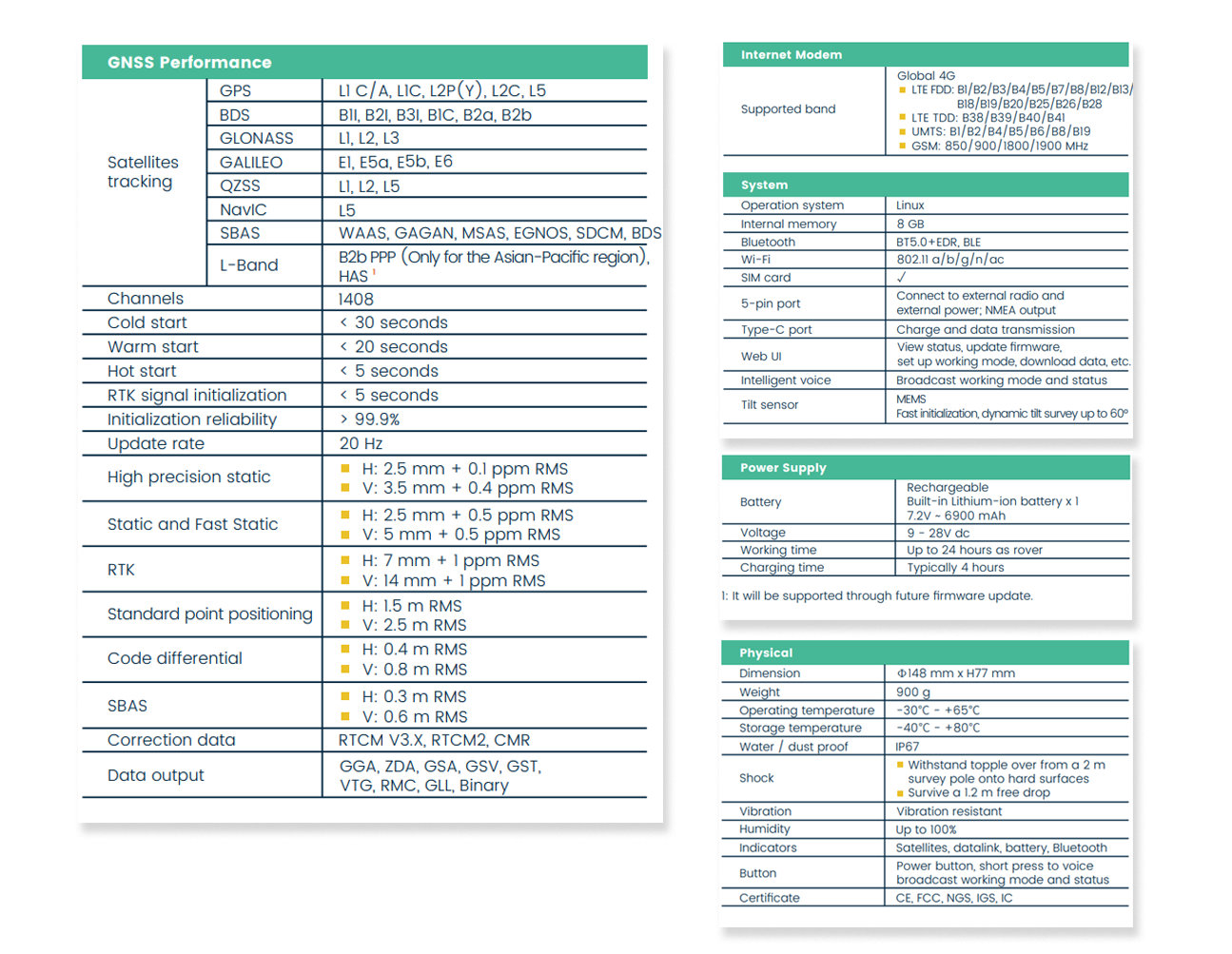

Specifications
