eRTK10 AR VISUAL STAKEOUT GNSS RECEIVER
eRTK10
AR VISUAL STAKEOUT GNSS RECEIVER
The eSurvey eRTK10 is a brand new GNSS receiver integrated with visual technology by eSurvey GNSS. It supports immersive 3D stakeout under real working environment. With the AR visual positioning technology, the eRTK10 helps you do stakeout faster and improves your working efficiency. The compact design makes it easy to carry around in various complex environments. Integrated with internal radio (Rx only) and 60° inclination IMU function, the eRTK10 is a perfect choice for any rover station scenarios.
Overview
AR Visual Stakeout: More Efficient Stakeout
There is no need to move the pole back and forth and rely on work experience during a stakeout. Follow the visual guide to precisely find the target stakeout point. Suitable for a non-experienced user and provide up to 50% more efficiency.
Max 60° Tilt Survey: A Different Way of Working
· Quickly measure accurate points while standing or walking without leveling the pole.
· Concentrate on where the pole tip needs to go, which is especially useful during a stakeout.
· Easily start a survey in environments that are hard to reach, such as building corners and slopes.
· No longer worry about the movement of the pole when measuring, provided that the pole tip is stationary.
Rugged Design
It is strongly made and capable of withstanding rough handling and no need to worry about variety tough environments.
Multi-constellation and Multi-frequency
With 1408 channels of GNSS tracking, it provides stable and reliable accuracy. All GNSS signals come with the standard including GPS, BDS, GLONASS, Galileo, QZSS, NavIC, SBAS and L-Band.
Light Weight & Compact Design
The compact design of the eRTK10 makes it a small size and lightweight GNSS receiver, it is easy to carry around by users without getting tired.
Web UI
It allows users to view position status, set up working mode, download data, and update firmware from the Web user interface with any smart phone, tablet, or PC.

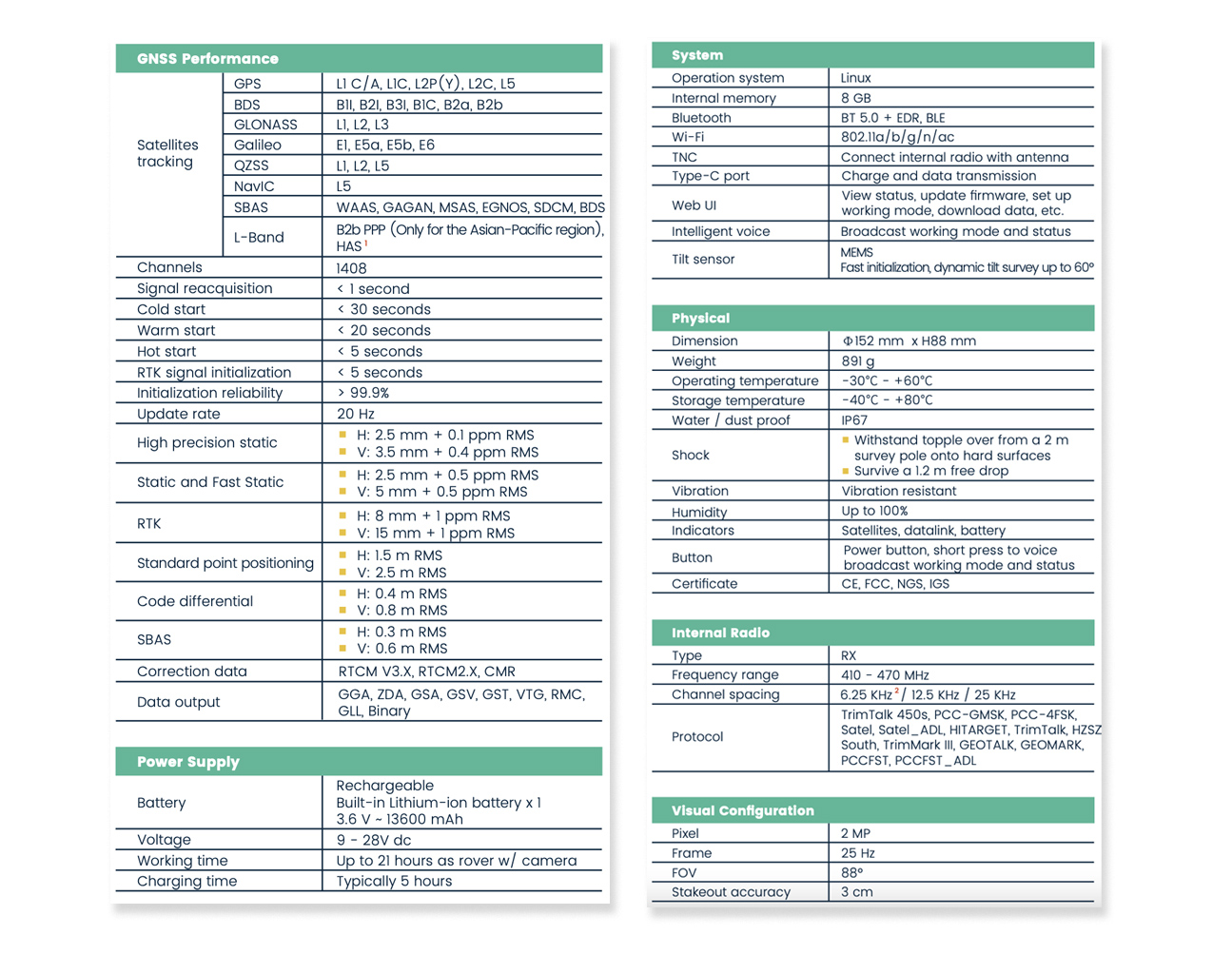

Specifications
