HD-MAX Ⅱ Dual-Frequency Echo Sounder

Product Detail

Product Tags

HD-MAX Ⅱ Hydrographic Solution

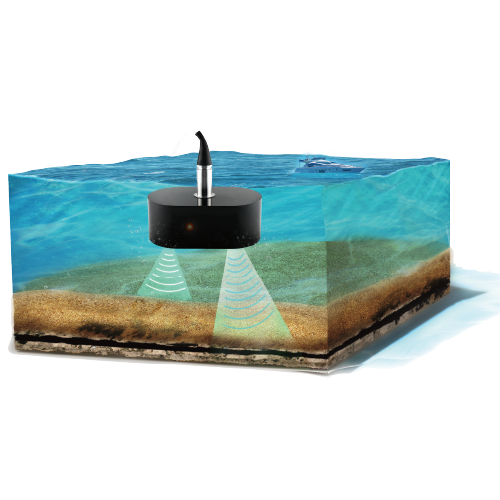

HD-MAX Ⅱ dual-frequency echo sounder redefines underwater surveying. Its enhanced host unit is water-resistant, portable, and offers versatile interfaces. The integrated temperature sensor in the transducer enables precise sound velocity calibration, and the fully automated algorithm tackles challenging terrains. Ideal for a wide range of underwater environments, including dredging, siltation, high sediment areas, and deep waters, HD-MAX Ⅱ is the unrivaled choice for hydrographic professionals.

Unmatched Accuracy & Efficiency

Dual-frequency ensures high-precision measurements. Real-time sound velocity calibration using integrated temperature sensors and a 50Hz ping rate deliver fast, reliable data capture. An adaptive depth algorithm further optimizes performance in diverse terrains.

2
3

Seamless User Experience

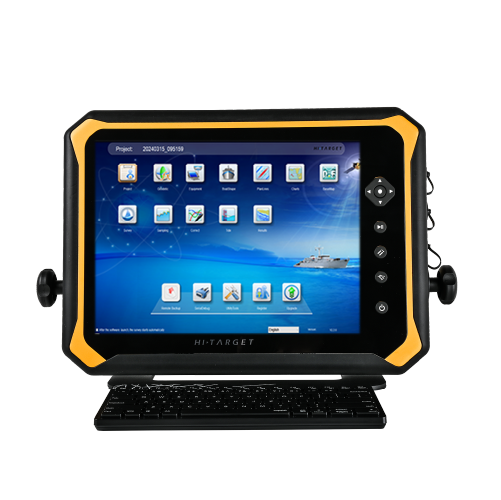

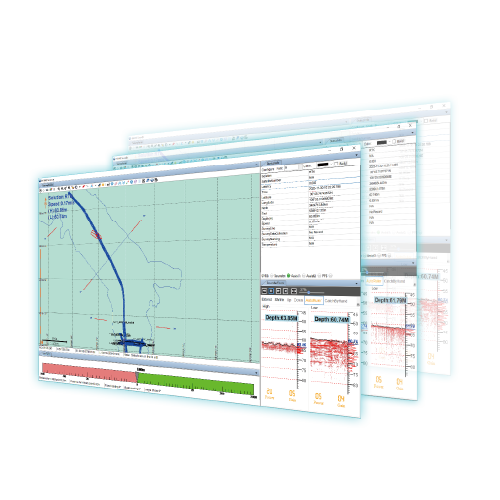

Integrated software streamlines your workflow. A bright 15″ display provides a clear view of data, while intuitive buttons offer easy control. 128GB+1TB storage with Windows 10 ensures efficient data processing.

Built for Tough Conditions

The IP66-rated housing protects against harsh environments. Its lightweight, portable design facilitates easy transport, and the sturdy build ensures long-lasting durability. Versatile connectivity options include PPS, Trigger support, and multi-format data output for effortless data sharing.

4

Product Parameters

High Channel: 100kHz ~ 1MHz
Low Channel: 10kHz ~ 50kHz

Frequency

0.15 ~ 300m @200kHz
1~ 2000m @24kHz

Depth Range

±0.01m ± 0.1% of depth @200kHz ±0.1m
± 0.1% of depth @24kHz

Accuracy

Standard NMEA 0183, DESO 25, ODOM, Knudsen, Bathy, Echotrac

Output Data Format

128GB + 1TB SSD

Storage

PPS*1, Trigger*1, RJ45*1, RS232*3, USB*3, HDMI*1, Transducer*1, Power*1

Interfaces
