iBoat BS3 USV

Product Detail

Product Tags

iBoat BS3 USV

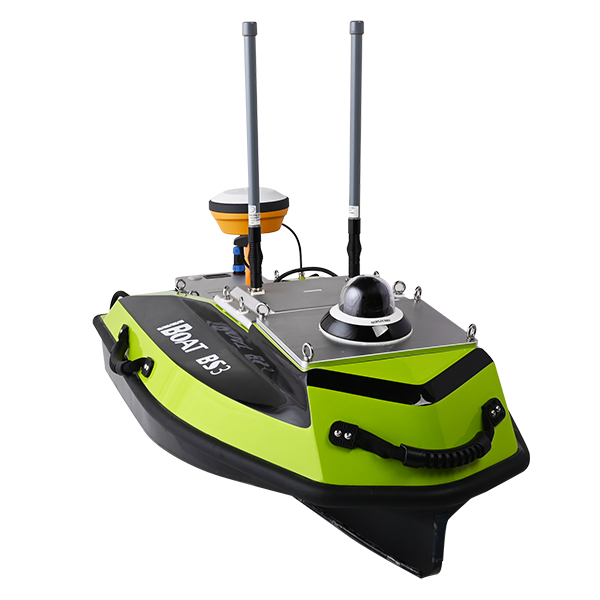

iBoat BS3 USV is a swift and intelligent surveying unmanned surface vehicle with unmatched usability and professional hull design. It is equipped with a high-performance single beam echo sounder, high-precision GNSS positioning and on-board data control and acquisition software. The excellent sounding module offers a measurement range from 0.15 m to 300 m, able to adapt to different working environments. Besides, ADCP and side-scan sonar can also be added for versatile applications.

官网BS3-01

Compact and User-friendly Design

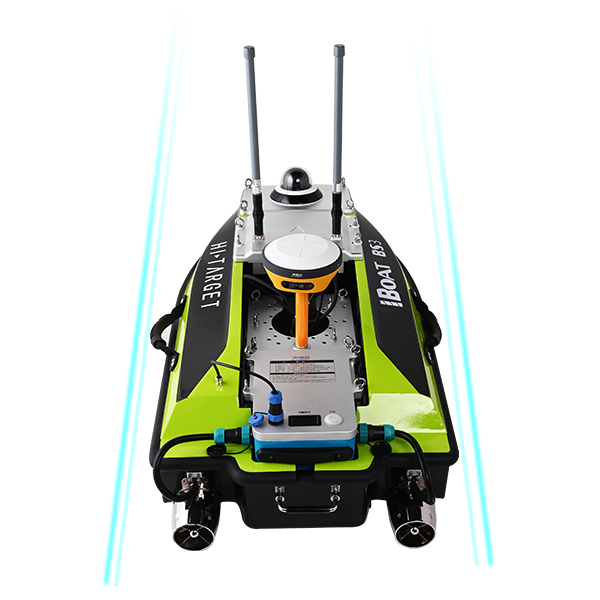

The modular design of all communication systems simplifies the installation steps and save users’ time. iBoat BS3’s 7 kg weight ensures that it can be carried out by a person anywhere.

Professional Survey Echo Sounder

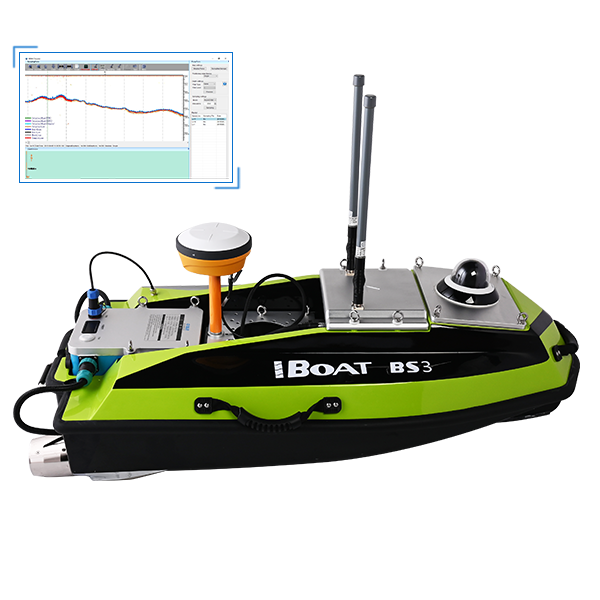

The built-in echo sounder provides excellent bathymetric performance, with easy-to-use data collection and post-processing software onshore.

BS3-02
BS3-03

Absolutely Accurate Auto-pilot

With Hi-Target high precision GNSS receiver and Hi-Target smart controlling system, iBoat BS3 can reach any targeted position with a 10 cm offset and provides accurate working paths.

Product Parameters

Up to 1500 m

Communication distance

6 m/s

Max speed

4 h @ 2 m/s

Battery endurance

0.15 m to 200 m

Sounding range

7 kg

Weight(without instrument and bttery)

10 cm

Positioning accuracy
