Topcon DL-501 Electronic Digital Level
DL-501
Electronic Digital Level
TOPCON
Surveying Civil Engineering Building Construction Levels Theodolites
World' s Highest Precision Digital Level
• 0.2mm Precision * Pattern Approval no.2011-l211
• Auto Focus *
• 2.5 sec High-Speed Measurement
• 20lx. Minimum Brightness
• Dual-axis Tilt Sensor

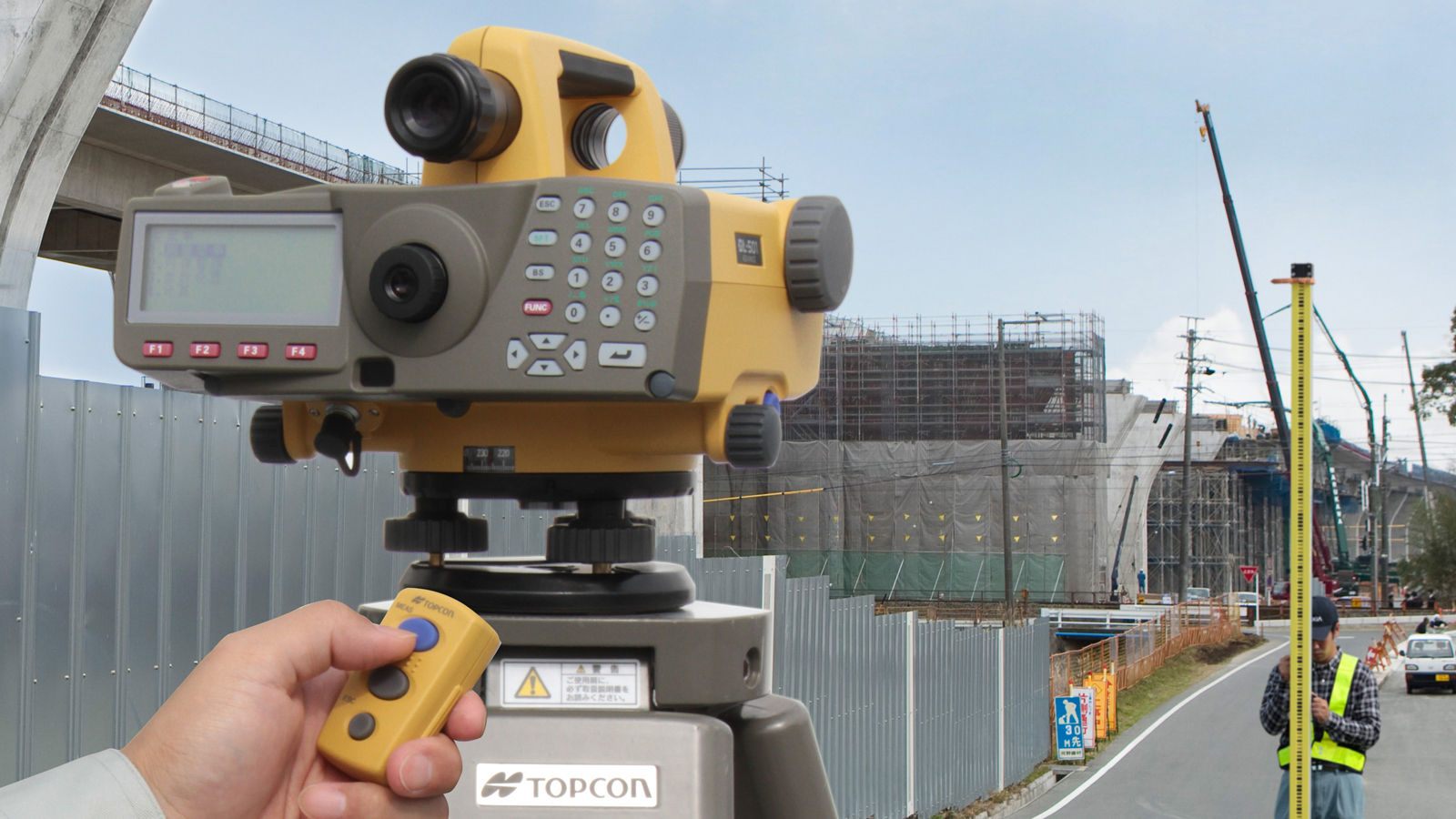

• Remote Trigger for Wireless Operation
• Line Leveling Program
• 10,000 Points Internal Memory
• SD/SDHC Card / USB Port
* DL-501 Advanced model features Auto Focus and View Finder for fast and accurate collimation. It also includes Rimote Trigger as standard accessory (optional for Standard model).
Technologies for Precision
The DL-501 series incorporates an array of advanced technologies to achieve the highest leveling accuracy in the industry.
• RAB-Code technology, superior optics, market-proven compensator and magnetic damping system ensure precise staff readings.
• Dual-axis compensator notifies instrument tilt, Remote Trigger prevents accidental jolts, and Auto Focus (DL-501 Advanced model) eliminates incomplete focusing. These unique technologies remove major error factors.
• Even in the dim light conditions, if the staff surface brightness is 20lx or more, the DL-501 series can read the staffs without compromising accuracy.
Technologies for Speed
Both models feature the measurement time of 2.5 seconds - the fastest in its class. The DL-501 Advanced model, equipped with Auto Focus and View Finder for quick
sighting, saves measurement time by up to 40% compared to manual focus digital levels.
Measurement Programs
Onboard program supports line leveling and data recording.
• Methods: BF, BFFB, BBFF, BFBF, aBF, aBFFB, aFBBF
• Up to two intermediate sights can be measured in each set.
• Adjustable tolerances and error calculation functions allow for on-site accuracy checks.

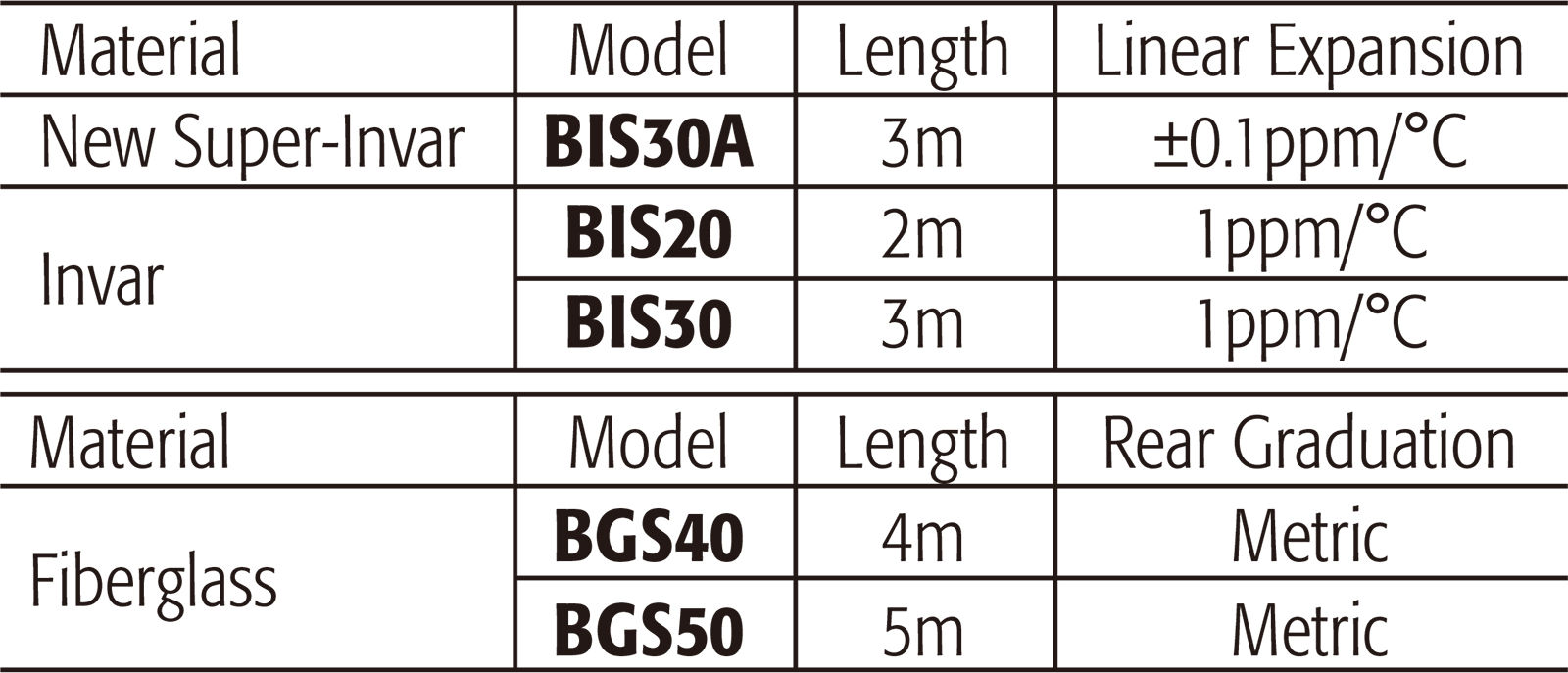

RAB-Code Staff
